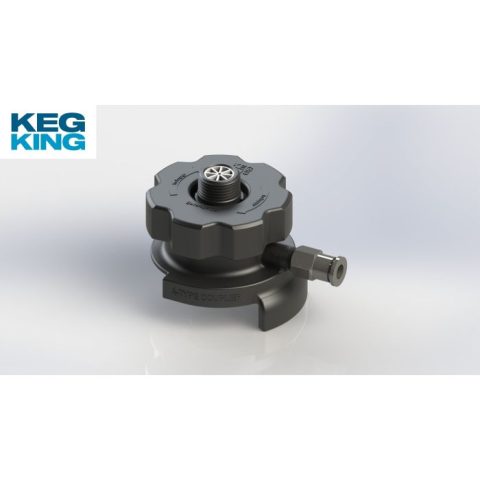

A TYPE COUPLER LOW PROFILE

Also known as German slider To fit Tooheys, Coopers, XXXX kegs etc.

Finally, an A-Type coupler solution that’s designed to take both the cost and the height out of standard A-type couplings.

Utilising high strength, food safe materials, our low profile A-Type couplers install onto kegs just like a normal slide on A-type coupling.

Once in place, the coupler can be engaged by twisting the dial clockwise to depress the valve in the keg spear.

Twist the dial counter-clockwise to disengage the coupler from the spear.

Our low profile coupler includes a high quality push-in fiting for attaching your gas input line with 5/16 (8mm OD) tubing.

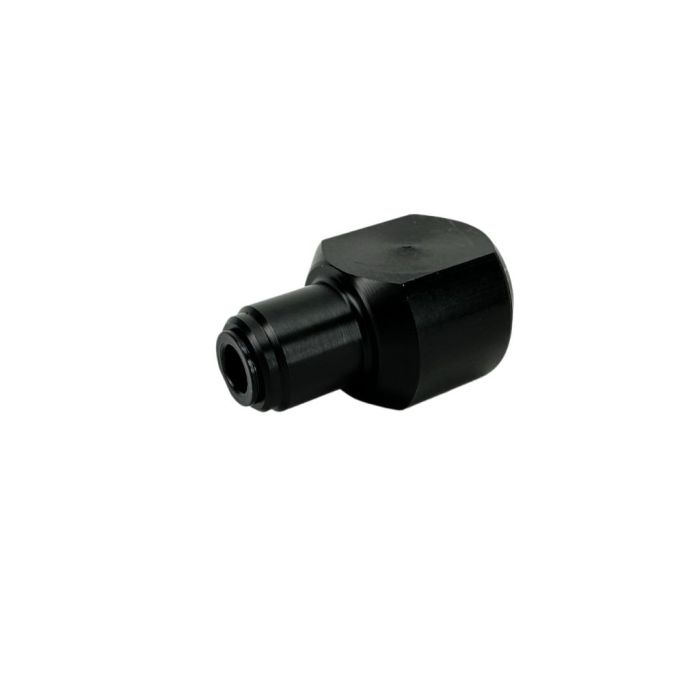

This variety of low profile A-type coupler also includes a 5/8 Female to 5/16 push-in (8mm OD) push-in fitting on the liquid output.

A non return valve is included in the liquid output port.

Includes:
– plastic coupler

– push in fitting for the liquid line

Specifications:

Dimensions

Height increased when fully engaged. (50mm)

Diameter. 78mm
